Calotte foot

€203.49*

net: €171.00

Prices incl. VAT plus shipping costs

Available in 14 business days, delivery time 4 - 8 business days (for deliveries in germany)

Product number: 1839.2

Product information "Calotte foot "

Calotte foot made of polished stainless steel V2A, the professional shelter for your barrel storage.

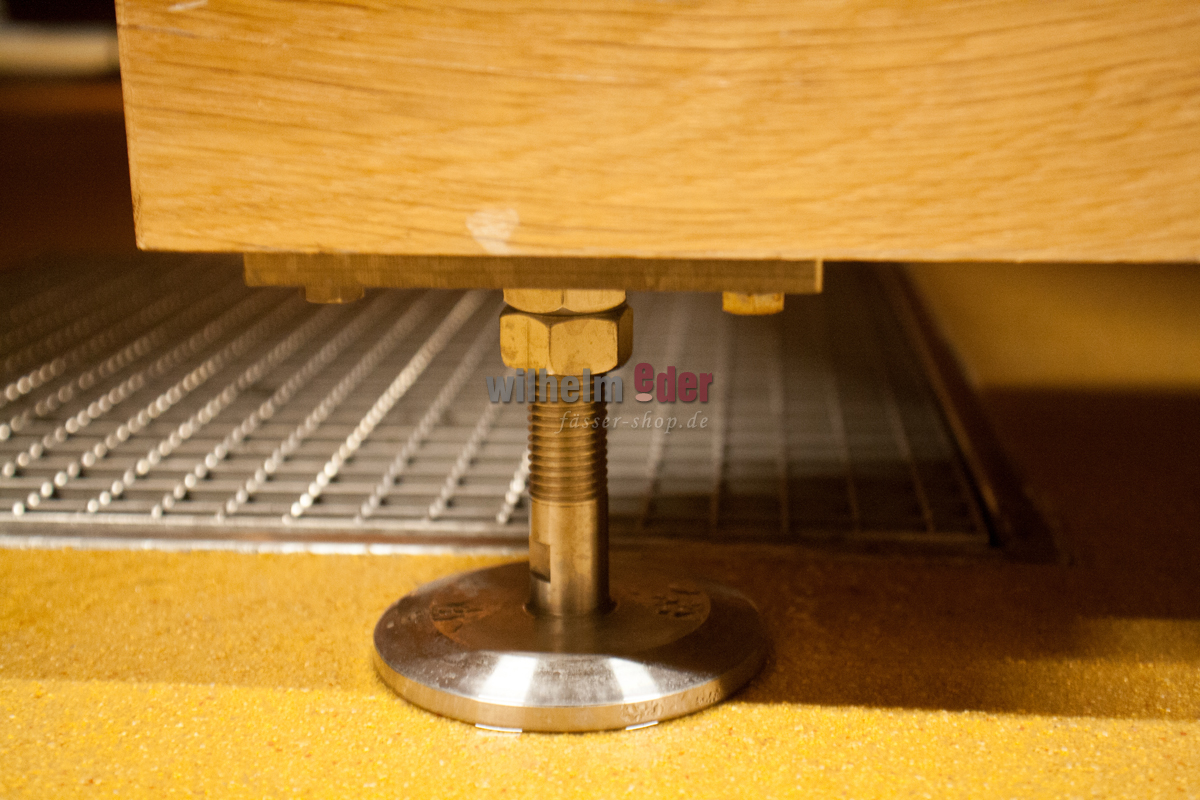

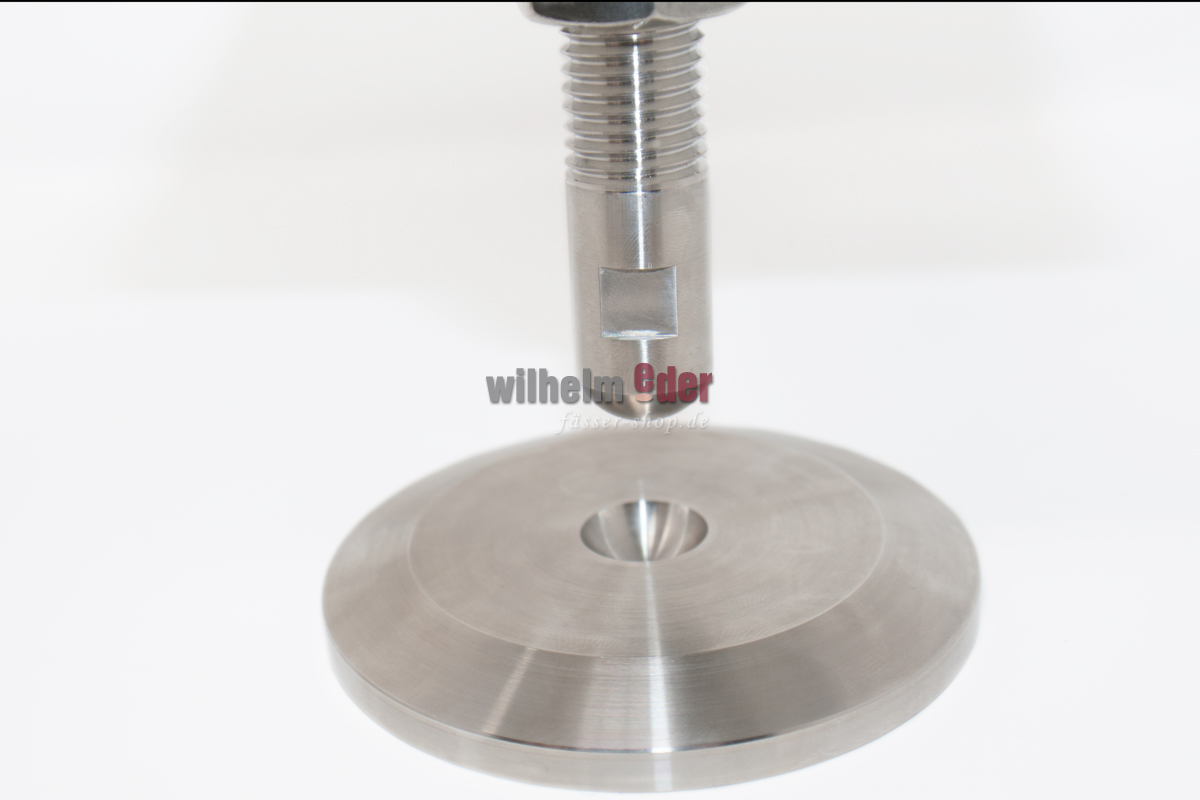

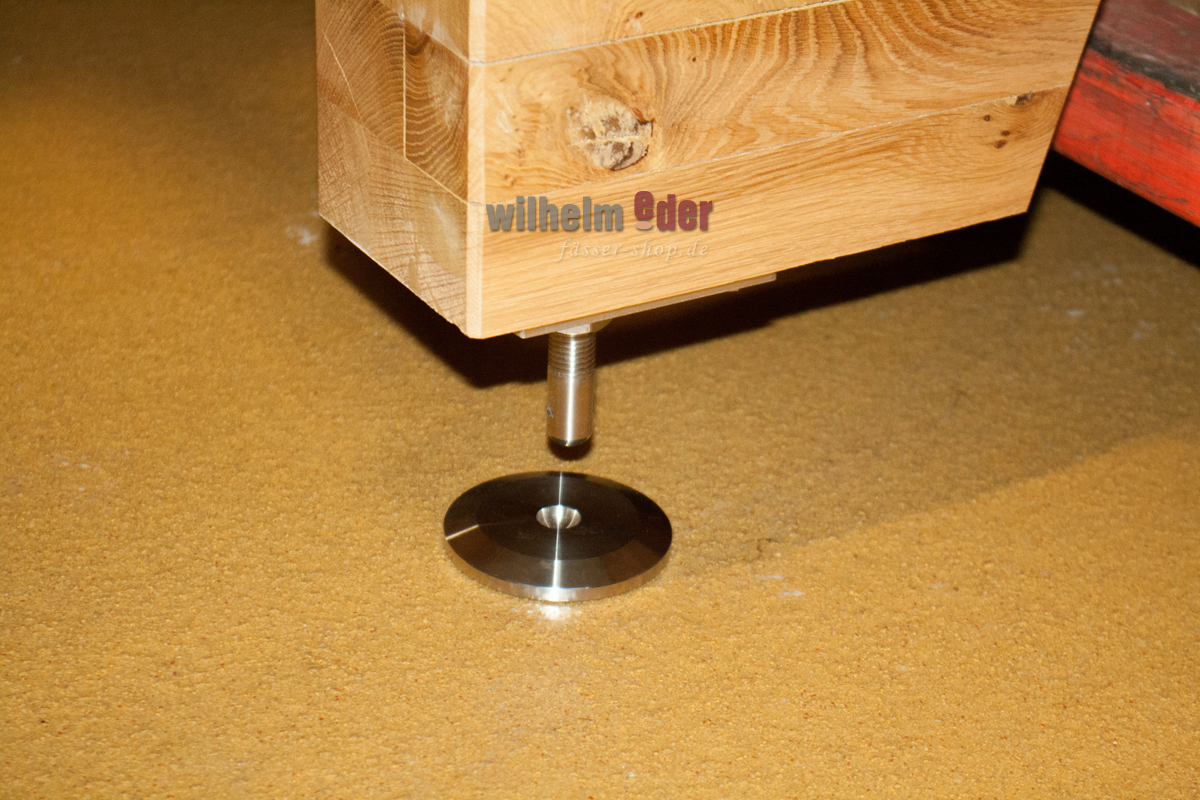

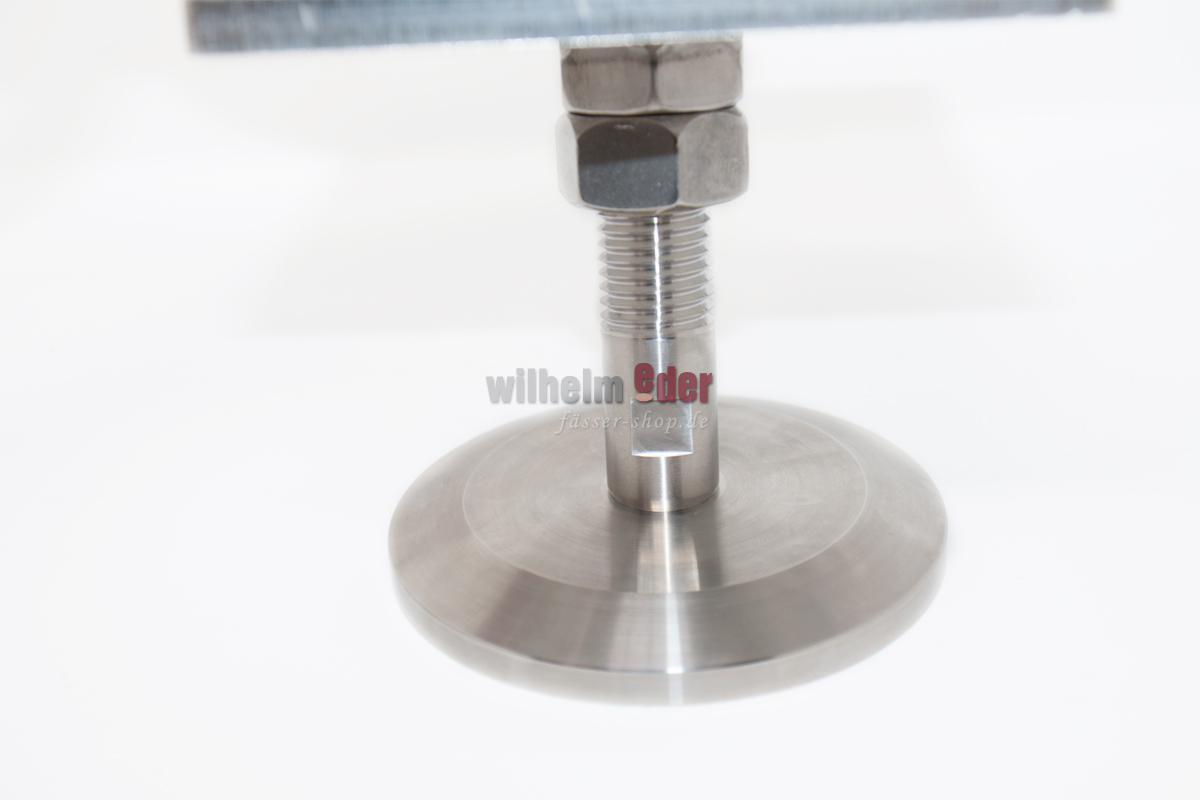

The square plate is firmly screwed to the underside of the drum bearing. The threaded bolt is firmly fixed on the upper side in the nut welded to the plate. The counter nut located further below allows exact adjustment to the desired height. The bolt is placed on the bottom of the base in the matching recess of the round plate.

By the individual adjustment of the four calotte feet it is possible to compensate an angle of up to 14 degrees and guarantees the horizontal storage of your large barrels, independent of unevenness on the floor. The floor storage systems do not stand on damp ground, so that the greatest possible hygiene is guaranteed.

The calotte feet are also used for the storage of stainless steel tanks.

Required are 4 pieces per cask storage

E-polished V2A

Plate 120 x 120 mm x 8 mm with 3/4" socket

Calotte foot 3/4" fine thread with lock nut

Plate 100 x 12 mm

Total height 120 mm

Compensation angle 14 degrees

With plate and 4 screws
