Stainless steel door for installation in round and oval vats
€863.94*
Available in 15 business days, delivery time 4 - 8 business days (for deliveries in germany)
Product information "Stainless steel door for installation in round and oval vats"

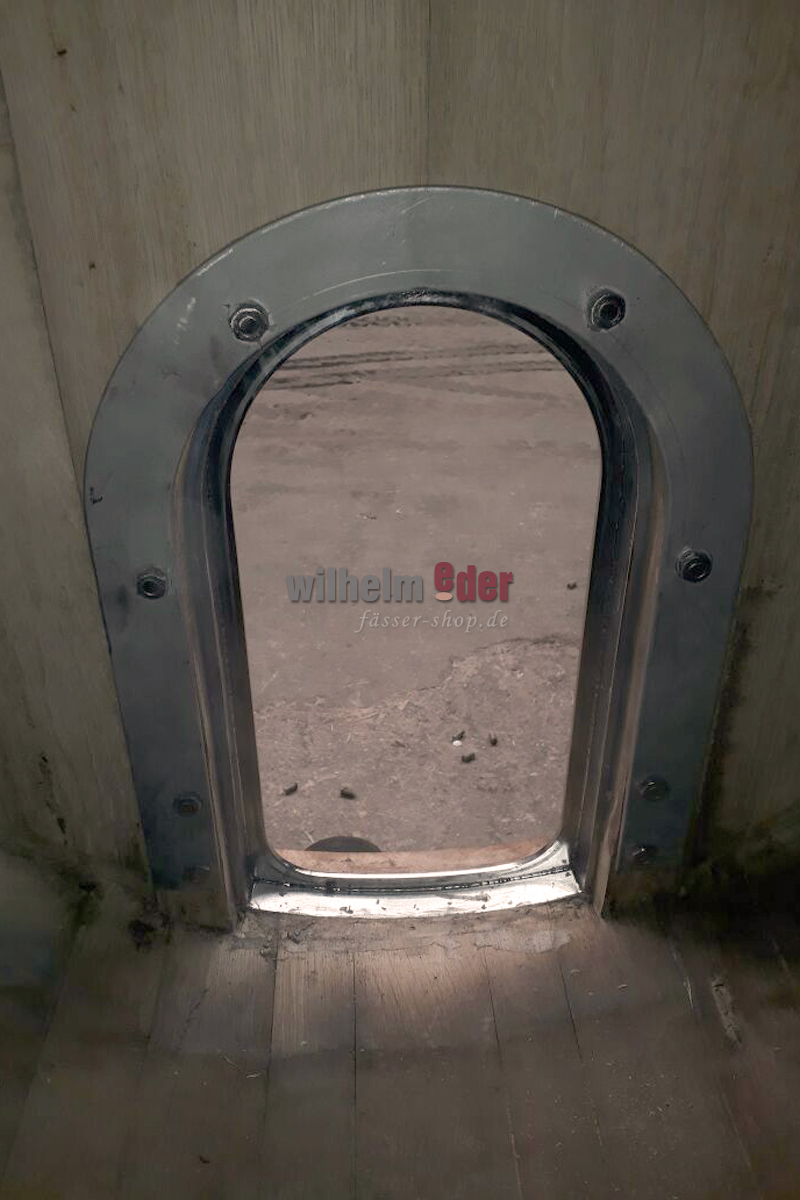

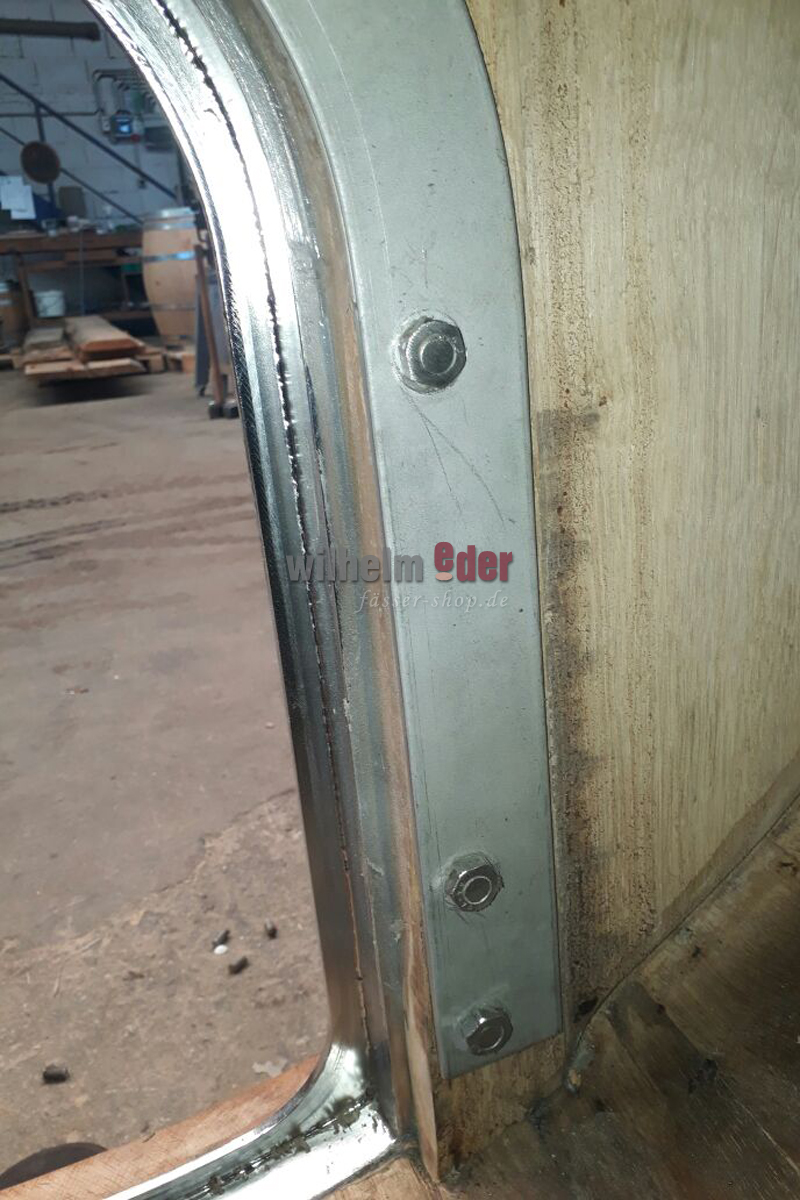

The doors are made of stainless steel (V4A) and open to the inside. All visible surfaces are polished and sanded, also the surface which has contact with the liquid. On demand the door can be equipped with a hole for a bunghole flaper with a screw plug for taps.
Prices exclusive installation. The installation of the stainless steel doors at new vats can be chosen separately at Accessories. The installation at old vats will be charged according to efforts by our coopers. If you have any questions, please feel free to write us an email.
Size 1
Suitable for vats starting at 4.000 l
Door opening: 250x495 mm

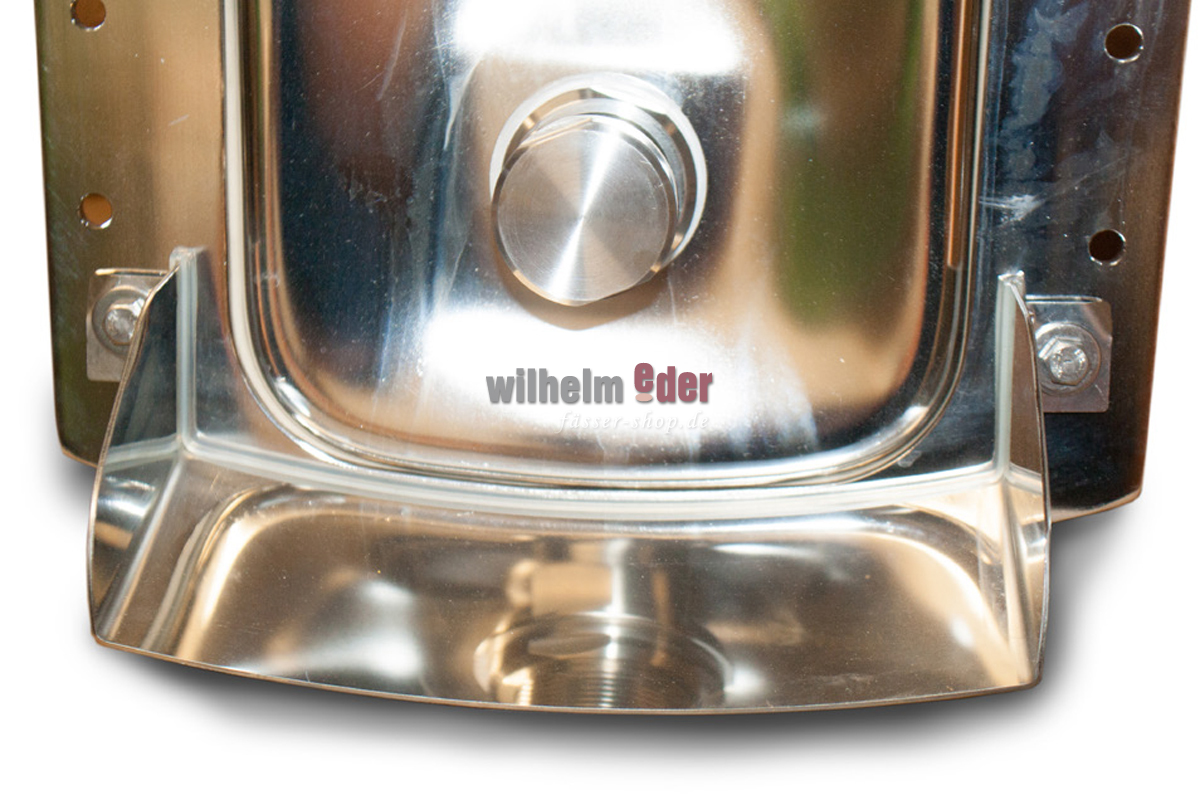

Discharge furrow: 14 cm

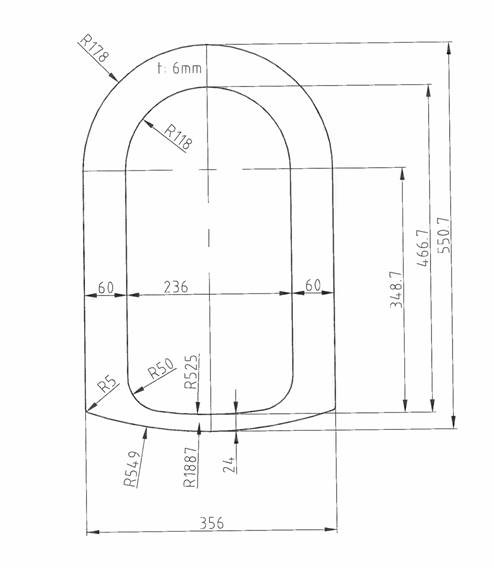

Size 2
Suitable for vats between 600 l - 1.200 l
Door opening: 238x465 mm
Discharge furrow: 11 cm

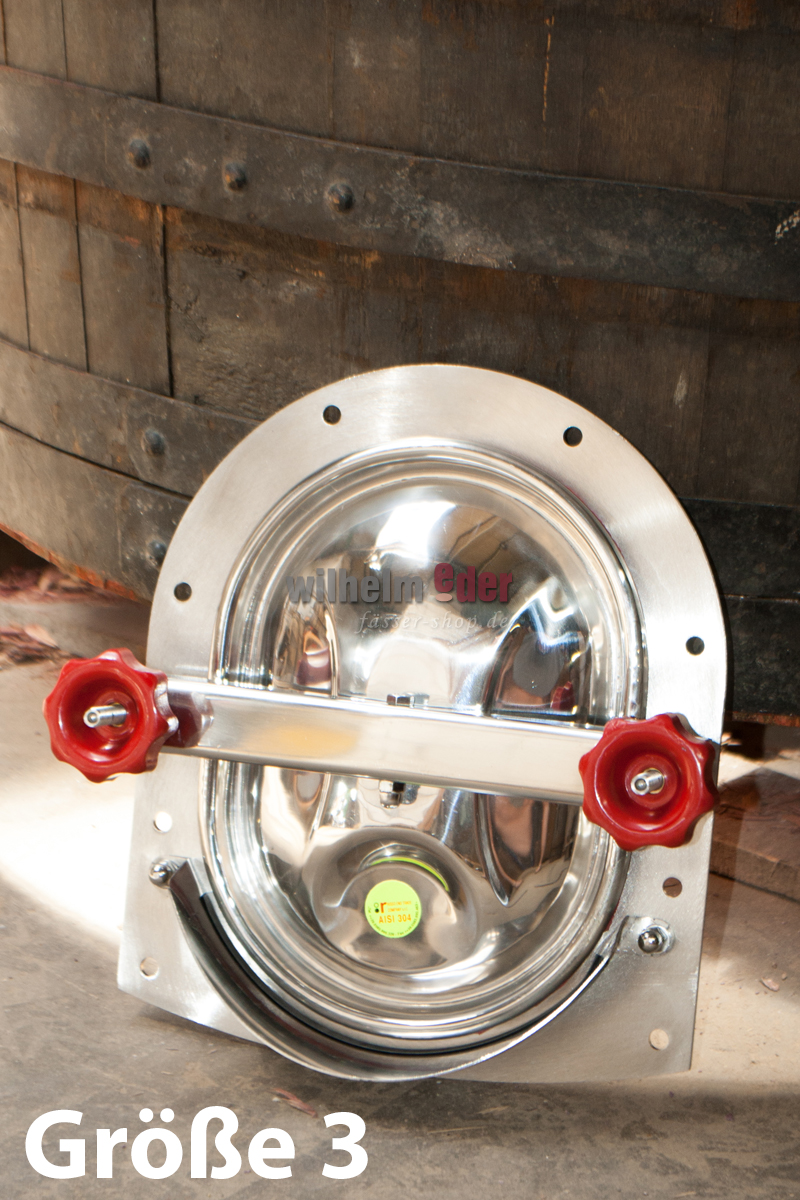

Oval stainless steel door
horizontally and
vertically installable, V4A
Door opening: 320x420 mm

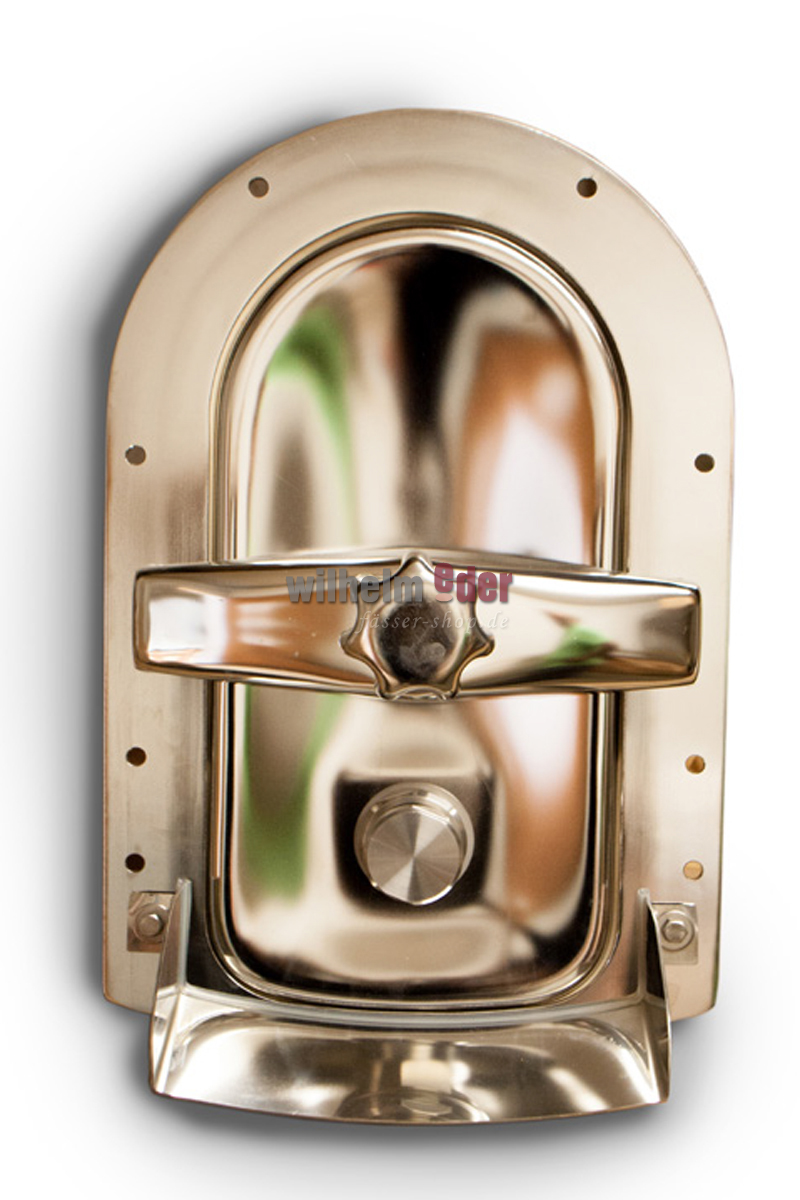

Size 1 & 2:
with V4A stainless steel frame and a seal and fixing kit for each.
Oval stainless steel door:
With frame, door, bracket and handwheel. Plus counter frame with seal and fixing set.
Installation
