Barrel storage made of wood

Product information "Barrel storage made of wood "

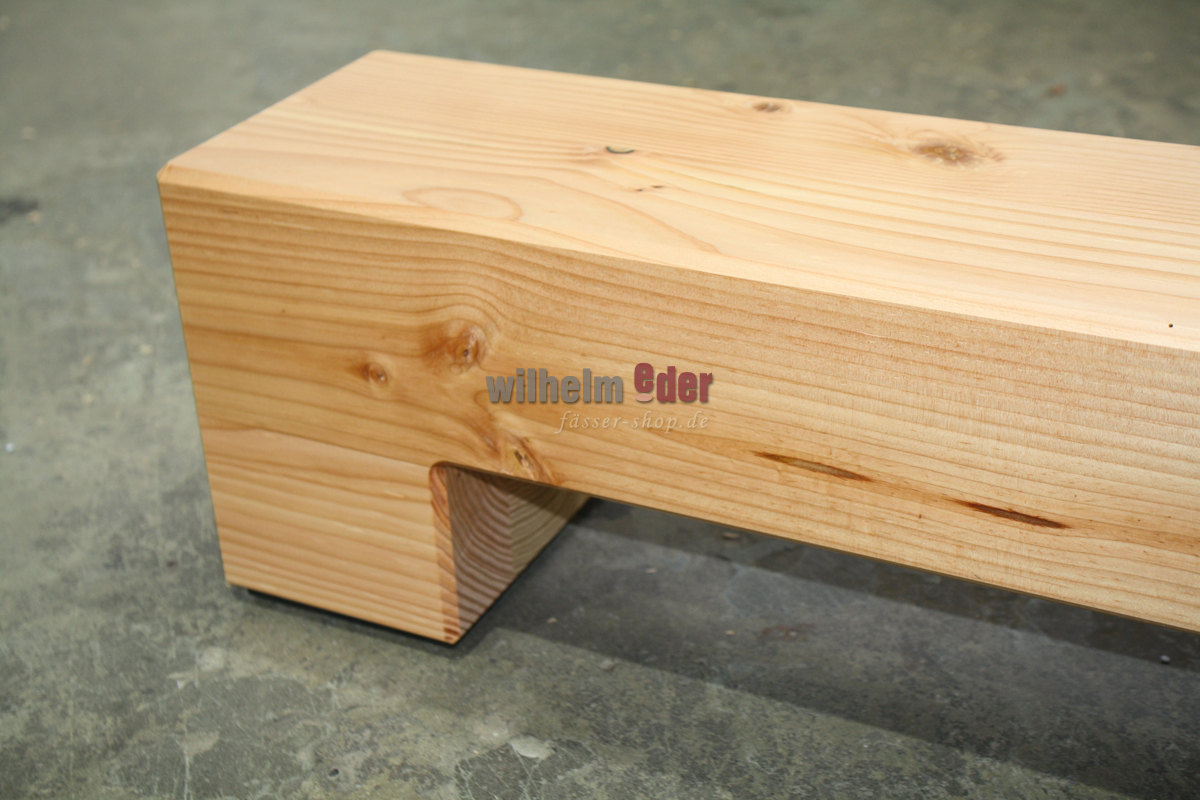

The wooden barrel storage systems for large barrels are made of air-dried Douglas fir wood.

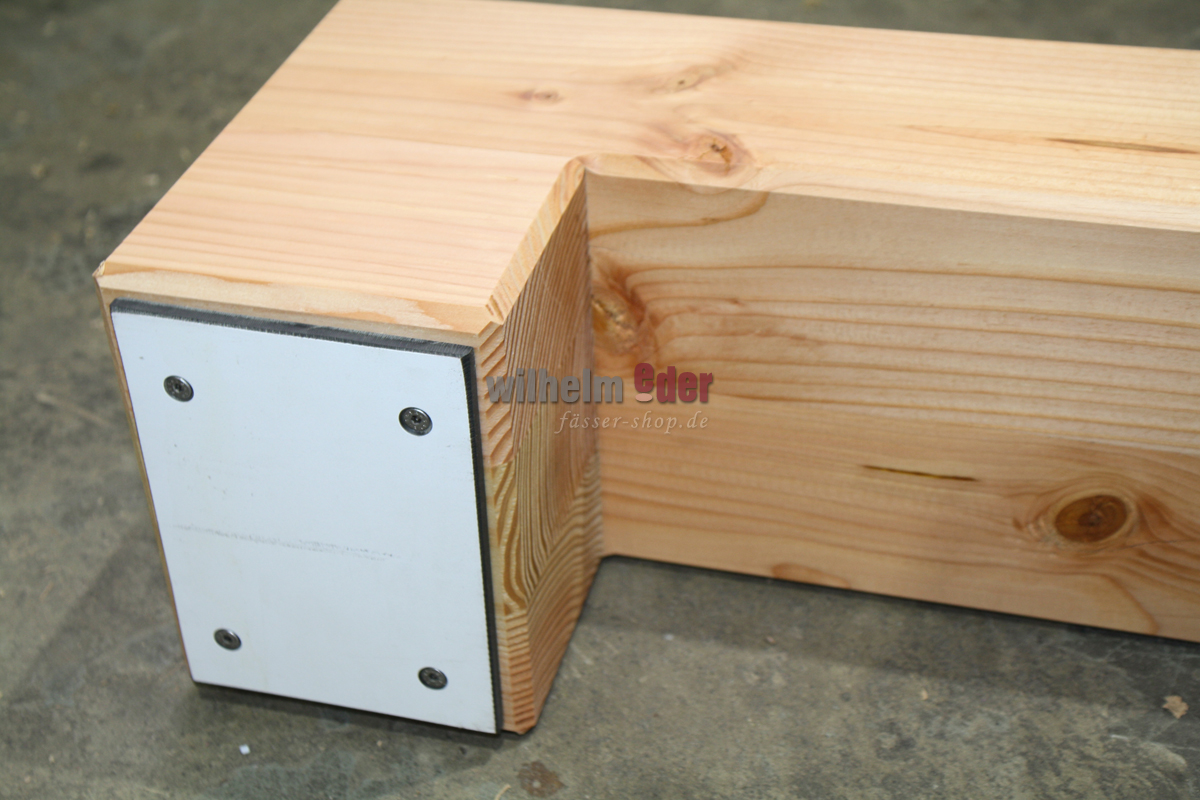

The wood comes from our own cutting. The bearings are planed and double coated with food-safe clear varnish. The solid core plates at the bottom are fixed with stainless steel screws.


Price per single piece.

Dimensions ca.:
Width: 100 cm
Height: 27 cm
Depth: 20 cm

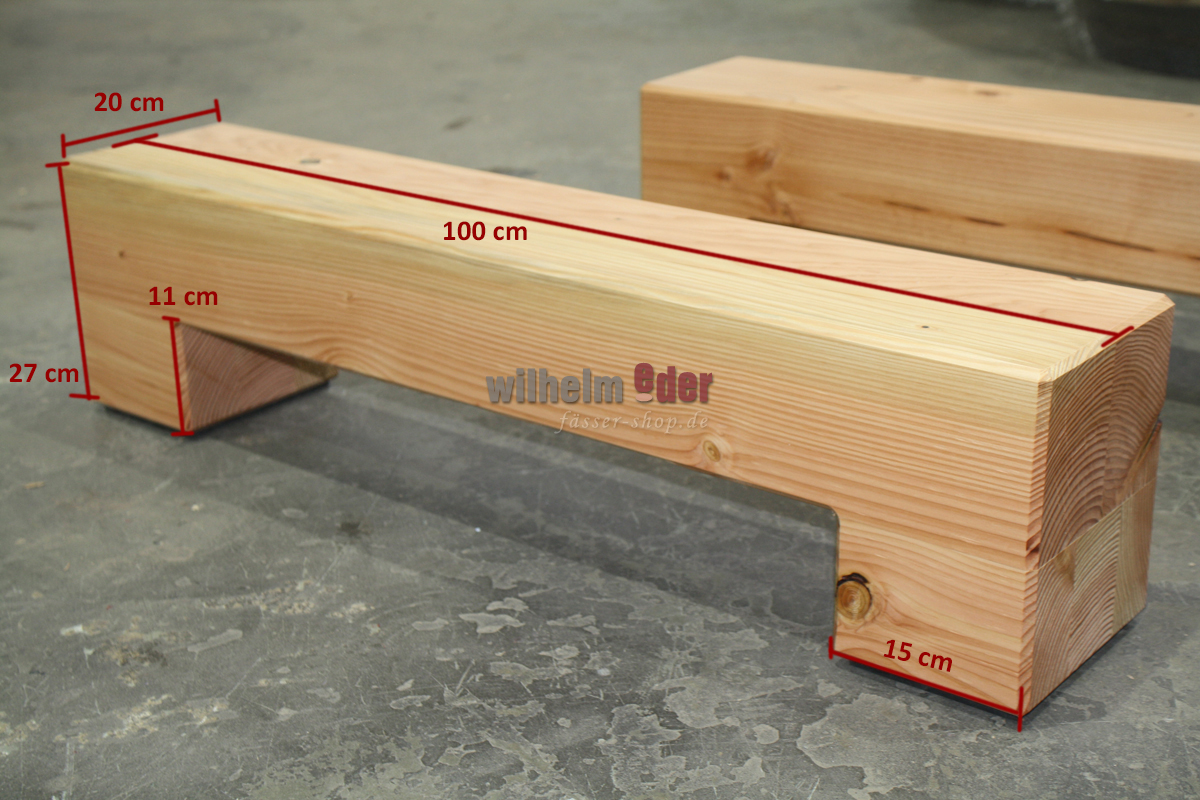

Further dimensioning in the picture.

Characteristics from "Barrel storage made of wood "
Material: Wood
New / used: New
Suitable for: > 1200 l barrels

Fittingly:

Calotte foot
Calotte foot made of polished stainless steel V2A, the professional shelter for your barrel storage. The square plate is firmly screwed to the underside of the drum bearing. The threaded bolt is firmly fixed on the upper side in the nut welded to the plate. The counter nut located further below allows exact adjustment to the desired height. The bolt is placed on the bottom of the base in the matching recess of the round plate. By the individual adjustment of the four calotte feet it is possible to compensate an angle of up to 14 degrees and guarantees the horizontal storage of your large barrels, independent of unevenness on the floor. The floor storage systems do not stand on damp ground, so that the greatest possible hygiene is guaranteed. The calotte feet are also used for the storage of stainless steel tanks.  Required are 4 pieces per cask storage

€203.49*
net: €171.00
Barrel fastenings
Barrel fastenings made of douglas fir or oak. Our barrel fastenings are suitable for barrels from 225 liters and more. An inexpensive and safe alternative to store your barrels. Please select correct size in pick list. Price/Piece

€10.71*
net: €9.00
